The pumping station provides the potential energy and pressure energy for water, and solves the only power source of irrigation, water supply and water resource allocation under the condition of no flow. As the main main pump station at present, it is applied to the drainage system. However, with the passage of time, the traditional pumping stations also expose some problems which are difficult to overcome in the long term operation. For example, the pool wall is easy to corrode, the sediment of the pump pit is precipitated, and the difficulty of integration is low, so it is difficult to achieve effective management and monitoring.

A glass fiber reinforced plastic buried sewage treatment pumping station developed by LOCKE, Germany, has the characteristics of small volume, high efficiency and intelligence. Compared with traditional pumping stations, it has fewer civil works, shorter manufacturing and installation period and more than 20% investment. According to the specific requirements of customers, set up, install and debug after the factory. The wellhead of the sewage pumping station is made of high quality FRP material, including water pump, grille, pipeline, valve, meter, control equipment and maintenance equipment, so as to maximize the cost effectiveness and reliability of the system.





1, the structure is very stable: the main body is made of green glass steel, which ensures the life of 50 years, the structure is stable, and the leakage and corrosion are thoroughly solved.

2, the failure rate of the pump is low: the use of the comminuted grille, the special pump of the precast pumping station, and so on, effectively prevent the pump failure;

3, ultra low deposition, environmental friendly: special bottom patent design, complete settlement of the problem of deposition; sealed design to solve environmental pollution problems;

4, no maintenance, cost saving: high-end patent design technology, installation savings of 80% manpower, material and time cost.





1. Customize on demand

Each set of prefabricated pumping stations is designed according to the data provided by the customer to ensure the operating conditions of the pump station to meet the requirements of the use.

2. New material

The cylinder structure of precast pump station is made of filament winding FRP, and computer controlled continuous winding is adopted to ensure uniform thickness and meet design requirements. The quality is stable and excellent.

3. Accessories standard

All parts are prefabricated in the factory, including pressure pipeline, maintenance platform, import and export pipe.

4. Highly integrated

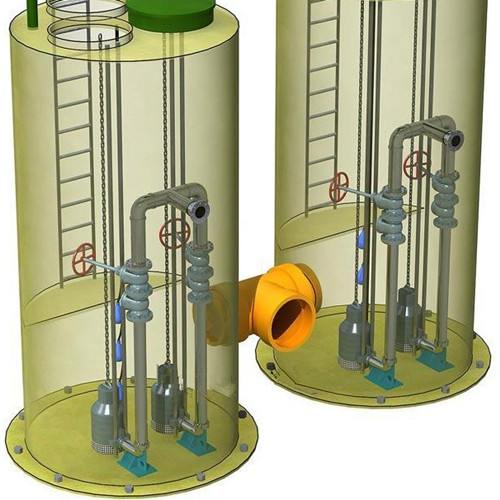

As an integrated equipment, the prefabricated pumping station is provided by the whole set: pump station cylinder, pressure pipe, maintenance platform, maintenance ladder, grille device, coupling system, ventilation device and anti slide well cover.

5. Beautiful appearance

The prefabricated pumping stations are all buried in the ground, the ground only has a maintenance hole and a control box, and the landscape type management room can be selected to be placed on the ground and coordinate with the surrounding environment.

6, cost saving

The pump station is supplied in a complete set. All the internal installation and commissioning works are completed in the factory. The site only needs to install the pump station as a whole, which greatly reduces the civil construction cycle and engineering cost, and reduces the overall investment of the owner.

7. Intelligent control system

The pump station adopts the independent research and development special control system, and the submersible pump is automatically controlled by pressure sensor or liquid level floating ball. The crushing character grid is often opened, the large object can automatically reverse, the whole pump station control operation, no need to be on duty. At the same time, it can use the intelligent control of mobile communication, which has remote monitoring platform, human-computer dialogue interface display and mobile terminal control. The on-site display can be used to calculate the flow rate and pump flow volume through volume measurement. It can automatically or manually control the pump group, and automatically record the daily working time and the cumulative time of the pump group. The starting and stopping level of the pump can be adjusted, the operation interval of the grille and the automatic operation of the deodorizing device can be adjusted according to the situation of the site.

8. Life span

The pump station barrel is made of glass fiber reinforced plastic, and the internal parts use SUS304 and hot-dip galvanizing and other anticorrosive materials, without maintenance and longer service life.

9. Easy to repair

All the pumps and grille are equipped with guideway, which can be quickly dismantled and installed when overhauled.

10. Function expansion

The precast pumping station can be used with the integrated sewage treatment equipment of our company to build a complete sewage treatment and reuse system.





1, the collection and transportation of sewage in the living quarters or in the rural community;

2. The collection and transportation of sewage in the urban sewage treatment plant;

3, the collection and transportation of rainwater in the low-lying areas of the urban area;

4, the construction and transformation of municipal sewage official network;

5, the reconstruction and expansion of the old pump station;

6. The circulation of water in the lake.
