Product overview
In a variety of occasions, such as home, office space, or shopping malls, undesigned toilets are added, and hand washbasins will be difficult. The German company LOCKE developed LTHM50S sewage will solve these problems for you. It can increase the toilet in the area without drainage, avoid large-scale civil construction, and do not need to change the original design scheme.
The LTHM50S series is LTHMMini upgrade sewage upgrade sewage upgrade, not only can apply to the family of new bathroom needs, but also meet the installation requirements of underground sewage.

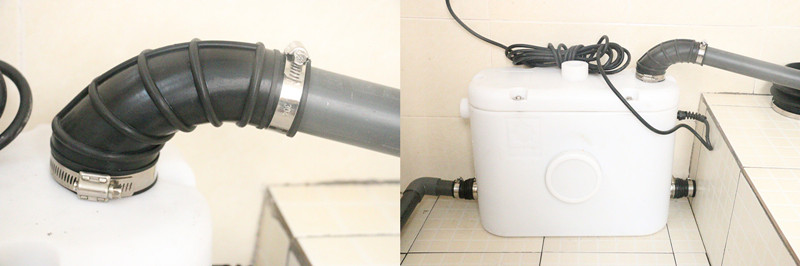

LTHM50S sewage lift installation is very simple. They can be connected directly to a 9L or 6L toilet. In addition, a shower, a wash basin and a bathtub can also be connected in the same room.
The use of LTHM50S to upgrade sewage, all the sewage discharged instantly, no accumulation, no odor and biogas.
LTHM50S upgrade sewage automatic control for the whole process, without manual operation. As long as there is water in and up to the start of the water level, automatic work can be carried out.
LTHM50S upgrade sewage protection grade is IP68, can be used in a submerged dangerous situation.
Performance characteristics
Preinstall system with convenient connection
+ mute operation
+ multiple intake
+ air blowhole
+ maintenance convenience
+ waterproofing and corrosion resistance
+ no odor (active carbon)
+ cutting system
Acousto-optic alarm
+ single phase 220V power supply
Application
+ family adding toilet
Villas' basement bathroom
+ Shower
+ laundry
Air conditioning condensate

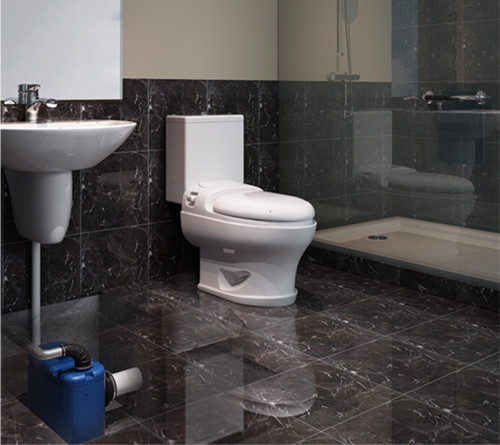

LTHM50S is a new generation of sewage lift, in the compact installation environment, can replace the LTHMMini. He can be installed not only in the rear of the toilet, but also in the burial pit. Most importantly, his protection level was IP68, and finally he was not afraid of soaking. You can easily add a set of sanitary utensils to the original warehouse, basement, balcony or other places you want, or put a washing machine in place.

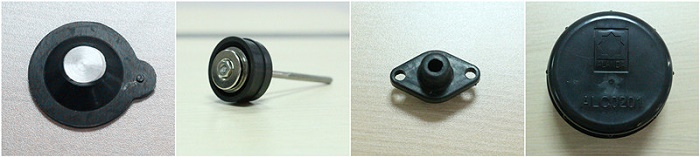

Accessories map
technical parameter
The use of LTHM50S to upgrade sewage efficient cutting pump, can make LTHM50S suitable for most applications:
Maximum lift: 13m
Maximum flow: 13m3/H
Rated power: 750W
Independent cutting device
Rated power supply: single phase 220V/50Hz
Medium temperature: 1 C -40 C
Box: PE material
Volume: about 50L

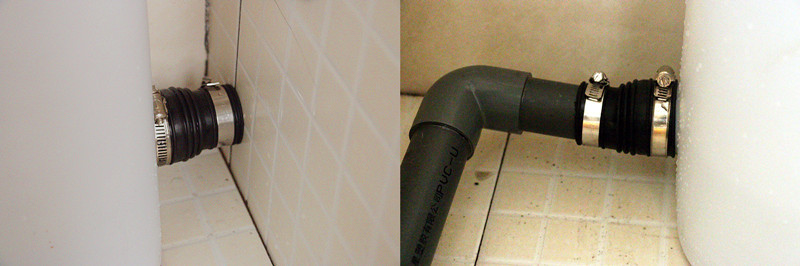

Four inlet interfaces: a stool mouth (o 100), a wash basin intake (o 40), a shower inlet (40), a washing machine inlet (40).
A water outlet interface: sewage outlet (40).
A vent: according to the requirements of the DIN EN10256 standard, the air hole (40) must be connected, and the vent pipe should be higher than the building roof.

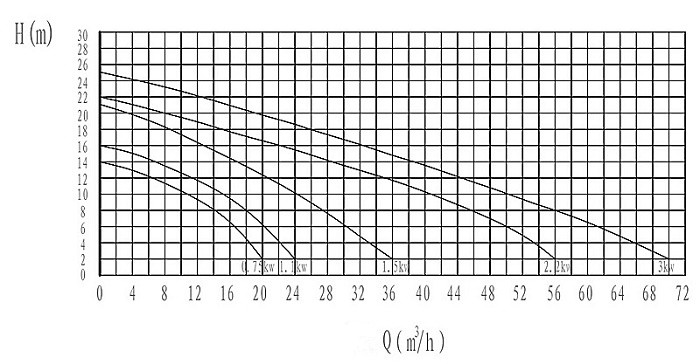

Performance curve of water pump:
installation diagram
LTHM50S series sewage elevator installed in the ground, but also can be used for underground installation (sump). The following figure is the recommended installation diagram:
